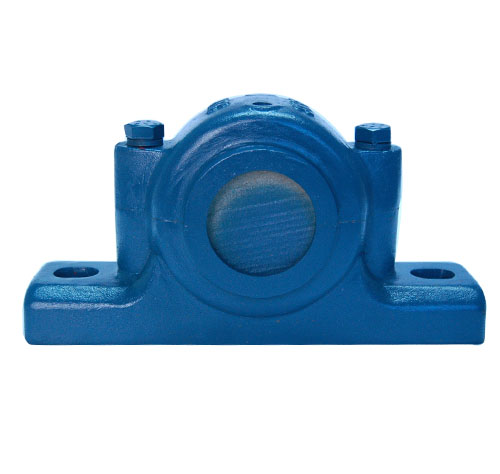

| ↓ Products List：—— SD3000 Series |
|
 |
 |
|
Housing No. |
Shaft dia |
Dimensions(mm) |
Housing |
Bearing No. |
Adapter Sleeve |
Locating Ring |
|
d1 |
weight |
|
(mm) |
D |
a |
b |
c |
g |
h |
L |
W |
m |
n |
u |
v |
s |
d2 |
d3 |
f1 |
f2 |
kg |
Number |
QTY |
|
|
H8 |
H12 |
h12 |
H12 |
H12 |
H13 |
≈ |
|
SD3034 |
150 |
260 |
540 |
200 |
50 |
77 |
160 |
230 |
320 |
450 |
110 |
36 |
52 |
M30 |
153 |
183 |
10 |
13.8 |
62 |
23034K |
H3034 |
SR260x10 |
1 |
|
SD3036 |
160 |
280 |
560 |
220 |
50 |
84 |
170 |
250 |
340 |
470 |
120 |
36 |
52 |
M30 |
163 |
193 |
10 |
13.8 |
78 |
23036K |
H3036 |
SR280x10 |
1 |
|
SD3038 |
170 |
290 |
560 |
220 |
50 |
85 |
170 |
250 |
345 |
470 |
120 |
36 |
52 |
M30 |
173 |
203 |
10 |
13.8 |
82 |
23038K |
H3038 |
SR290x10 |
1 |
|
SD3040 |
180 |
310 |
620 |
230 |
60 |
92 |
180 |
270 |
360 |
510 |
140 |
36 |
52 |
M30 |
183 |
213 |
10 |
13.8 |
92 |
23040K |
H3040 |
SR310x10 |
1 |
|
SD3044 |
200 |
340 |
700 |
260 |
65 |
100 |
200 |
290 |
400 |
570 |
160 |
36 |
55 |
M30 |
203 |
240 |
11 |
15.7 |
125 |
23044K |
H3044 |
SR340x10 |
1 |
|
SD3048 |
220 |
360 |
740 |
270 |
65 |
102 |
210 |
300 |
420 |
610 |
170 |
36 |
55 |
M30 |
223 |
260 |
11 |
15.7 |
140 |
23048K |
H3048 |
SR360x10 |
1 |
|
SD3052 |
240 |
400 |
820 |
300 |
70 |
114 |
240 |
330 |
475 |
680 |
190 |
43 |
62 |
M36 |
243 |
286 |
12 |
17.4 |
200 |
23052K |
H3052 |
SR400x10 |
1 |
|
SD3056 |
260 |
420 |
860 |
320 |
85 |
116 |
250 |
350 |
500 |
710 |
200 |
43 |
62 |
M36 |
263 |
306 |
12 |
17.4 |
230 |
23056K |
H3056 |
SR420x10 |
1 |
|
SD3060 |
280 |
460 |
920 |
330 |
85 |
128 |
280 |
360 |
550 |
770 |
210 |
43 |
62 |
M36 |
283 |
332 |
13 |
19.1 |
290 |
23060K |
H3060 |
SR460x10 |
1 |
|
SD3064 |
300 |
480 |
940 |
340 |
85 |
131 |
280 |
370 |
560 |
790 |
210 |
43 |
62 |
M36 |
303 |
352 |
13 |
19.1 |
300 |
23064K |
H3064 |
SR480x10 |
1 |
|
SD3068 |
320 |
520 |
1020 |
370 |
100 |
143 |
310 |
400 |
615 |
860 |
230 |
50 |
70 |
M42 |
323 |
372 |
13 |
19.1 |
400 |
23068K |
H3068 |
SR520x10 |
1 |
|
SD3072 |
340 |
540 |
1060 |
390 |
100 |
144 |
325 |
410 |
640 |
890 |
250 |
50 |
70 |
M42 |
343 |
392 |
13 |
19.1 |
450 |
23072K |
H3072 |
SR540x10 |
1 |
|
SD3076 |
360 |
560 |
1080 |
390 |
100 |
145 |
340 |
410 |
665 |
900 |
260 |
50 |
70 |
M42 |
363 |
412 |
13 |
19.1 |
470 |
23076K |
H3076 |
SR560x10 |
1 | |
|
|
|
|
