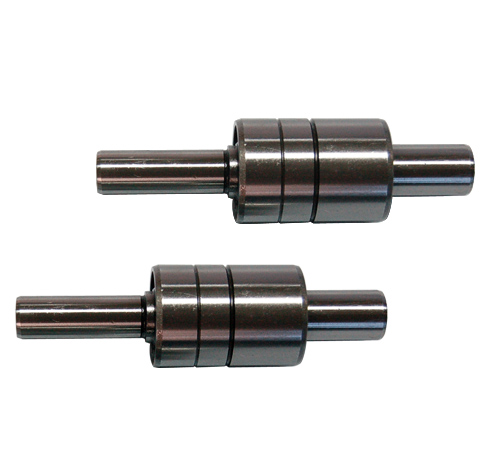

　↓ Products List：—— WS Series

WS Series Dimensions (Ball-ball Type)
ZIX	NSK	FAG	Dimension ( inch)
ZIX	NSK	FAG	A	B	C	D	E	K	L	D1	S1	D2	S2	D22	S22
WIB163067		WS2262	2.62	0.33	1.23	0.6267		1.18	1.06	0.5133	0.26	0.4739	1.19
WIB163066		WS2263	2.59	0.98	0.08	0.6267		1.18	1.53
WIB163071		WS2279	2.80	0.37	1.36	0.6267		1.18	1.06			0.4739	1.28
WIB122478		WS2307	3.07	0.53	1.48	0.4739		0.94	1.06
WIB163079		WS2311	3.11	0.54	1.52	0.6267	0.188	1.18	1.06
WIB132480		WS2315-1	3.15	0.56	1.28	0.5000		0.94	1.31
WIB163080		WS2315-2	3.15	0.62	1.47	0.6267		1.18	1.06
WIB122483		WS2325	3.26	0.63	1.31	0.4739		0.94	1.31
WIB163085	885342	WS2332-1	3.33	0.68	1.59	0.6267	0.188	1.18	1.06
WIB163085B		WS2333	3.33	0.68	1.59	0.6267		1.18	1.06			0.4739	1.49
WIB163085B		WS2334-6	3.35	0.67	1.61	0.6267		1.18	1.06	0.5906	0.56	0.4739	1.38
WIB163087		WS2340-2	3.41	0.53	1.34	0.6267		1.18	1.53			0.4739	1.25
WIB153087		WS2344-1	3.44	0.53	1.50	0.5906	0.188	1.18	1.42
WIB153087A		WS2344-4	3.44	0.53	1.50	0.5906		1.18	1.42			0.4739	1.35
WIB163087A		WS2344-6	3.44	0.53	1.50	0.6267		1.18	1.42			0.4739	1.35
WIB163088		WS2345	3.46	0.70	1.69	0.6267		1.18	1.06
WIB163089		WS2349	3.49	0.76	1.32	0.6267		1.18	1.42
WIB163089A		WS2351	3.51	0.82	1.63	0.6267		1.18	1.06			0.4739	1.50
WIB173691		WS2357-2	3.57	0.55	1.49	0.6693		1.42	1.53			0.5906	1.34
WIB163091		WS2358-1	3.58	0.67	1.50	0.6267		1.18	1.41	0.5906	0.57	0.4739	1.35
WIB122692	BWF26-36A	WS2362	3.62	0.67	1.38	0.4739		1.02	1.57
WIB122694	BWF26-14RUJ	WS2372	3.72	0.85	1.34	0.4739		1.02	1.53
WIB203696		WS2377-2	3.78	0.67	1.65	0.7874		1.42	1.46	0.6267	0.67	0.6267	1.64
WIB153098		WS2383	3.84	0.90	1.41	0.5906		1.18	1.53
WIB163098		WS2385-7	3.86	0.67	1.66	0.6267		1.18	1.53
WIB163098		WS2385-8	3.86	0.71	1.62	0.6267	0.188	1.18	1.53
WIB1226102		WS2401	4.02	1.06	1.38	0.4739		1.02	1.57
WIB1938102	885881	WS2401-3	4.02	0.55	1.84			1.50	1.63			0.6267	1.76	0.5138	0.78
WIB2047111		WS2436	4.36	0.60	1.90	0.7874		1.85	1.87			0.6267	1.88
WIB1938113		WS2443	4.44	1.13	1.68			1.50	1.63	0.6267	1.00	0.6267	1.56
WIB1938117A		WS2460	4.61	0.96	2.02			1.5	1.63			0.6267	1.7
WIB1938119	885786	WS2468-2	4.69	1.05	2.01			1.50	1.63			0.6267	1.89
WIB1630123		WS2485	4.85	1.00	1.60	0.6267		1.18	2.25
WIB1630128		WS2503	5.04	0.91	1.88	0.6267		1.18	2.25
WIB1938130		WS2509	5.10	1.30	1.68			1.50	2.13	0.6692	1.20	0.6692	1.58
WIB3055130		WS2511	5.12	1.26	1.99	1.1810		2.17	1.86			0.5906	1.88
WIB163098		WS3385-7	3.86	0.67	1.66	0.6267	0.188	1.18	1.53
WIB122480		WS6315-1	3.15	0.56	1.28	0.5000		0.94	1.31
WIB163080		WS6315-2	3.15	0.62	1.47	0.6267	0.188	1.18	1.06
WIB122485		WS6332	3.33	0.81	1.46	0.4759	0.188	0.94	1.06
WIB163085		WS6332-1	3.33	0.68	1.59	0.6267	0.188	1.18	1.06
WIB122690OS		WS6354	3.54	1.47	0.54	0.4744		1.02	1.54
WIB122692OS		WS6364-4	3.64	1.47	0.64	0.4744		1.02	1.54
WIB1226940S		WS6372	3.72	0.85	1.34	0.4744		1.02	1.53
WIB11938102OS	8858810S	WS6401-3	4.02	0.55	1.84	0.7485		1.50	1.63			0.6267	1.76	0.5138	0.78
WIB1938113OS	885841OS2	WS6443	4.44	1.13	1.68	0.7485		1.50	1.63	0.6287	1.00	0.6287	1.56
WIB11938119OS		WS6468-2	4.69	1.05	2.01	0.7485		1.50	1.63			0.6290	1.89
WIB11938121OS		WS6475B	4.75	1.32	1.81	0.7485		1.50	1.63	0.6267	0.63	0.6290	1.71
