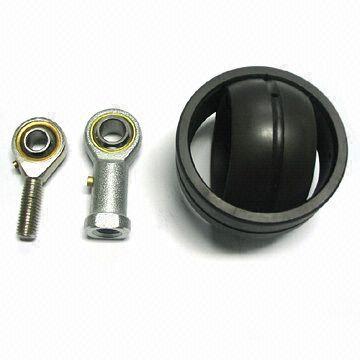

Spherical Plain Bearing & Rod End
Agricultural Bearing
Linear Motion Ball Bearing
Self-Lubrication Bearing
Universal Joint
Automotive Hub Wheel Bearing
Automotive Hub Units
Automotive Clutch Release Bearing
Automotive Water Pump Bearing
Automotive Tensioner & Idler Bearing
Automotive Alternator Bearing
Automotive Air-Conditioner Bearing
  Location：Home - Products Now Time：

　↓ Products List：—— GX...S Series


Bearing No.
Boundary dimensions(mm)
Mass
d
D
B
C
H
dk
S
d1
D1
A
rs,r1s
α°
Kg
max
min
min
≈
≈
GX10S
10
30
7.5
7
9.5
32
7
27.5
15.5
3
0.6
5
0.036
GX12S
12
35
9.5
9.3
13
38
8
32
18
4
0.6
5
0.072
GX15S
15
42
11
10.8
15
46
10
39
22.5
5
0.6
6
0.108
GX17S
17
47
11.8
11.2
16
52
11
43.5
27
5
0.6
4
0.137
GX20S
20
55
14.5
13.8
20
60
12.5
50
31
6
1
5
0.246
GX25S
25
62
16.5
16.7
22.5
68
14
58.5
34.5
6
1
5
0.415
GX30S
30
75
19
19
26
82
17.5
70
42
8
1
5
0.614
GX35S
35
90
22
20.7
28
98
22
84
50.5
8
1
5
0.973
GX40S
40
105
27
21.5
32
114
24.5
97
59
9
1
6
1.59
GX45S
45
120
31
25.5
36.5
128
27.5
110
67
11
1
6
2.24
GX50S
50
130
33
30.5
42.5
139
30
120
70
10
1
6
3.14
GX60S
60
150
37
34
45
160
35
140
84
12.5
1
6
4.63
GX70S
70
160
42
36.5
50
176
35
153
94.5
13.5
1
3
5.37
GX80S
80
180
43.5
38
50
197
42.5
172
107.5
14.5
1
4
6.91
GX100S
100
210
51
46
59
222
45
198
127
15
1.1
4
10.9
GX120S
120
230
53.5
50
64
250
52.5
220
145
16.5
1.1
3
13.9
GX140S
140
260
61
54
72
274
52.5
243
177
23
1.5
3
18.1
GX160S
160
290
66
58
77
313
65
271
200
23
1.5
2
23.2
GX180S
180
320
74
62
86
340
67.5
299
225
26
1.5
4
30.9
GX200S
200
340
80
66
87
365
70
320
247
27
1.5
1
34.
